Compute the autocovariance function (ACF) corresponding to the LIGO-Virgo design noise power spectrum (PSD).

%matplotlib inline
%config InlineBackend.figure_format = 'retina'

import matplotlib.pyplot as plt
import seaborn as sns
import scipy.signal as ssig
import lalsimulation as lalsim

sns.set(context='notebook', palette='colorblind')

Getting PSD arrays

We need to first get PSDs. To do this, we will take advantage of the reference PSDs shipped with LALSimulation. The choices below correspond to the design sensitivies of advanced LIGO Hanford (H1), LIGO Livingston (L1) and Virgo (V1). Since these are projected sensitivies, these are the same for H and L, but in a real analysis that would not be the case (because, although the detectors have the same design, in real life they are independent).

Of course, the LALSimulation functions could be replaced with whatever PSD you want.

psd_func_dict = {
    'H1': lalsim.SimNoisePSDaLIGOZeroDetHighPower,
    # 'L1': lalsim.SimNoisePSDaLIGOZeroDetHighPower,
    'V1': lalsim.SimNoisePSDAdvVirgo,
}
ifos = list(psd_func_dict.keys())

Now we want to instantiate the PSDs, to get an array of values instead of a function. To do this, we need an array of frequencies corresponding to the time series data we constructed above. NOTE: all this does is evaluate the PSDs at the desired frequencies—you could skip straight to this part if you had an array in the first place.

# define sampling rate and duration
fsamp = 8192
duration = 2

delta_t = 1/fsamp
tlen = int(round(duration / delta_t))

# define minimum frequency, below which the PSD will taper
fmin = 10

freqs = fft.rfftfreq(tlen, delta_t)
delta_f = freqs[1] - freqs[0]

# we will want to pad low frequencies; the function below applies a
# prescription to do so smoothly, but this is not really needed: you
# could just set all values below `fmin` to a constant.
def pad_low_freqs(f, psd_ref):
    return psd_ref + psd_ref*(fmin-f)*np.exp(-(fmin-f))/3

psd_dict = {}
for ifo in ifos:
    psd = np.zeros(len(freqs))
    for i,f in enumerate(freqs):
        if f >= fmin:
            psd[i] = psd_func_dict[ifo](f)
        else:
            psd[i] = pad_low_freqs(f, psd_func_dict[ifo](fmin))
    psd_dict[ifo] = psd

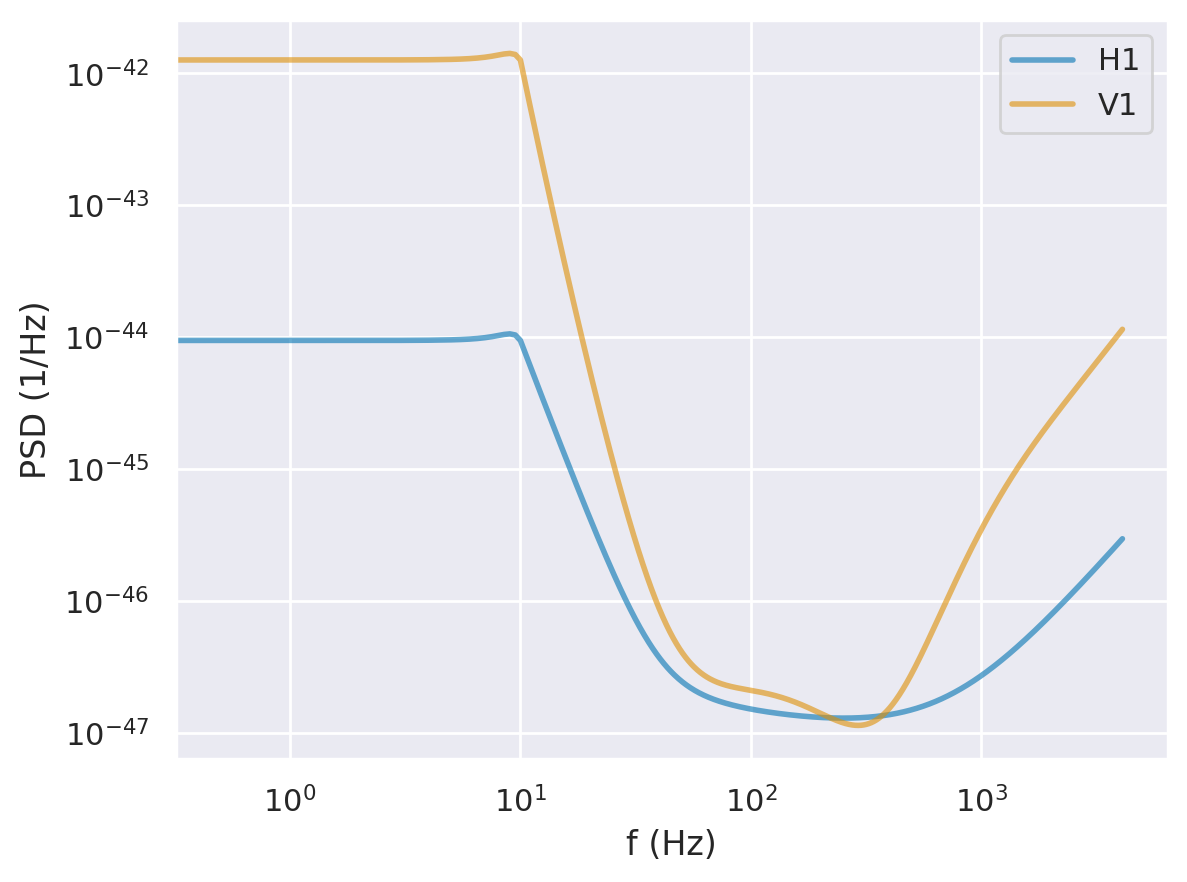

for ifo, psd in psd_dict.items():
    plt.loglog(freqs, psd, label=ifo, alpha=0.6, lw=2)
plt.xlabel('f (Hz)')
plt.ylabel('PSD (1/Hz)')
plt.legend();

Computing ACFs

We can now turn the above PSDs into ACFs, for a given (truncated) analysis length.

acf_dict = {}
for ifo, psd in psd_dict.items():
    acf_dict[ifo] = 0.5*np.fft.irfft(psd) / delta_t

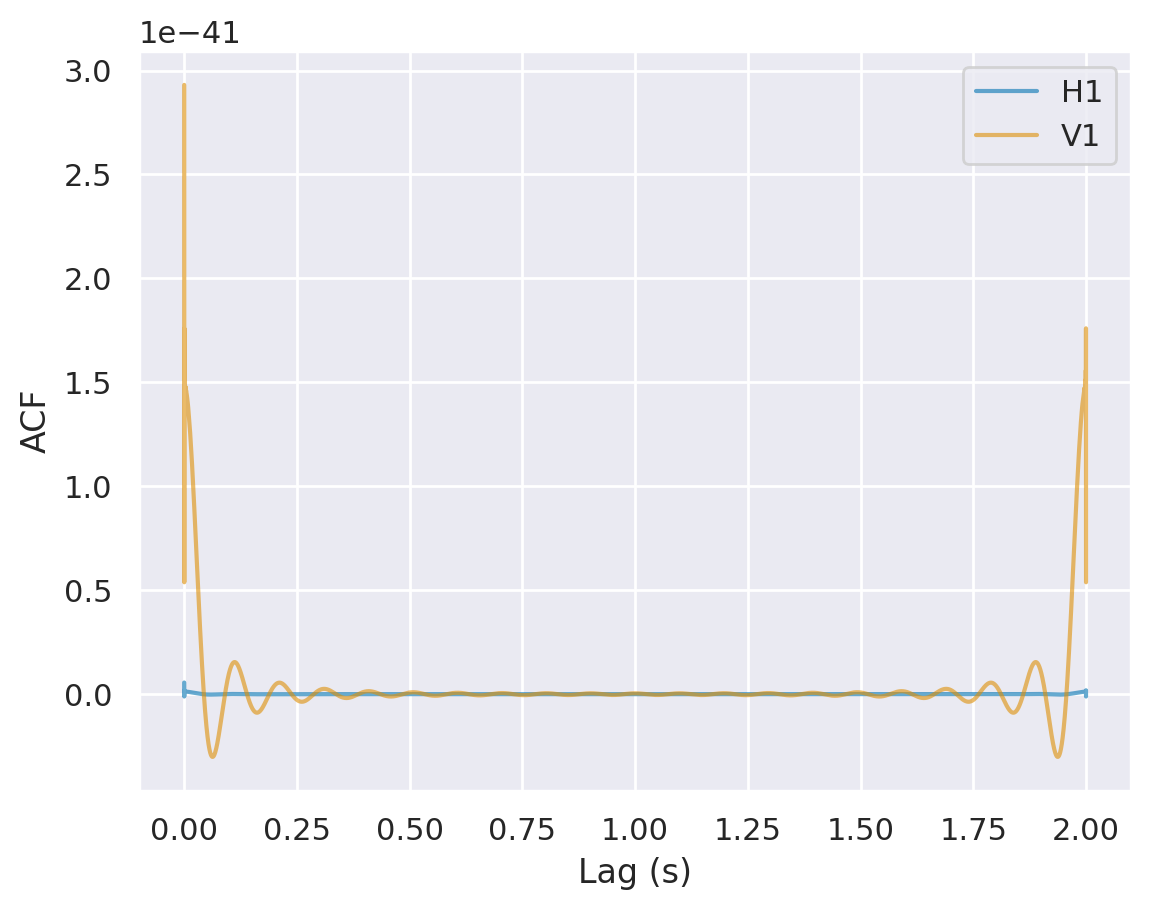

for ifo, acf in acf_dict.items():
    plt.plot(delta_t*np.arange(len(acf)), acf, label=ifo, alpha=0.6)
plt.xlabel('Lag (s)')
plt.ylabel('ACF')
plt.legend();

Test ACF

Let’s make sure that we can get a positive-definite covariance for this ACF.

import scipy.linalg as sl

# covariance length in seconds
analysis_duration = 0.5
analysis_length = int(0.5/delta_t)

for ifo, acf in acf_dict.items():
    np.linalg.cholesky(sl.toeplitz(acf[:analysis_length]))

print("No errors!")

No errors!
